Chip resistors for matching networks and noise filtering applications.



Uses



Conventional Resistor Products

Wire bondable thin film ceramic chip resistors in multiple configurations

Features

  • Suitable for both gold-tin soldering and epoxy die attachment.
  • Single and multiple value chips; Square and rectangular configurations.
  • Inventory of standard designs for quick delivery.

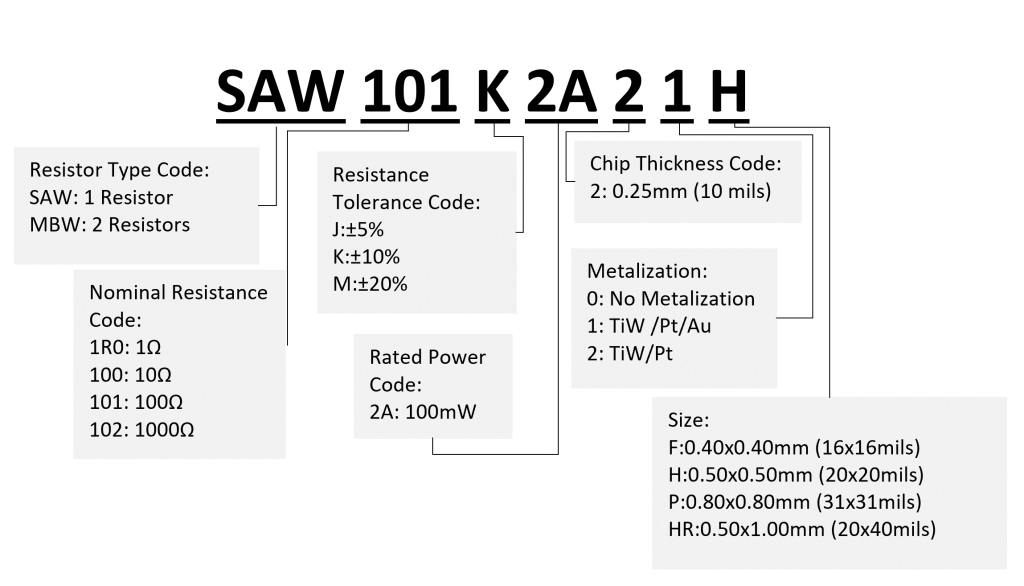

Key to Part Numbers

Metal Stack

Depending on the ceramic dielectric used and electrode configuration, we use different metal stacks to achieve best mechanical and electrical performances. The different stacks we may use are as follows.



Top
TaN – TiW – Au
Bottom

TiW – Pt – Au



Product List

Part Number (Ω)  Tolerance +/- 10% Sheet Resistance (Ω) Size (mils)
L × W
Size (mm)
L × W
Design Series
SAW100K2A21H 10 100 20 × 20 0.50 x 0.50 SA Series – 1
SAW250K2A21F 25 250 16 × 16 0.40 x 0.40 SA Series – 1
SAW250K2A21H 25 250 20 × 20 0.50 x 0.50 SA Series – 1
SAW500K2A21F 50 500 16 × 16 0.40 x 0.40 SA Series – 1
SAW500K2A21H 50 500 20 × 20 0.50 x 0.50 SA Series – 1
SAW500K2A21HR 50 500 20 × 40 0.50 x 1.00 SA Series – 1
SAW500K2A21P 50 500 31 × 31 0.80 × 0.80 SA Series – 1
SAW750K2A21HR 75 750 20 × 40 0.50 × 1.00 SA Series – 1
SAW101K2A21H 100 101 20 × 20 0.50 x 0.50 SA Series – 1
SAW101K2A21HR 100 101 20 × 40 0.50 × 1.00 SA Series – 1
SAW201K2A21H 200 201 20 × 20 0.50 x 0.50 SA Series – 2
SAW102M2A21H 1000 102 20 × 20 0.50 x 0.50 SA Series – 3
MBW200K2A21P 10 × 2 200 31 × 31 0.80 × 0.80 MB Series
MBW250K2A21P 12.5 × 2 250 31 × 31 0.80 × 0.80 MB Series
MBW500K2A21P 25 × 2 500 31 × 31 0.80 × 0.80 MB Series
MBW750K2A21P 37.5 × 2 750 31 × 31 0.80 × 0.80 MB Series
MBW101K2A21P 50 × 2 101 31 × 31 0.80 × 0.80 MB Series





Resistance temperature characteristics (TCR)

–100 + / –50 ppm / ° C (@ –55 ° C to + 85 ° C)

Resistor rated power

100 mW @ <70 ° C

Heat-resistant

320 ℃ × 5min Max N2 in gas atmosphere



Ultra-Small Tight-Tolerance Resistors

Tantalum nitride laser-trimmed resistors in an ultra-small form factor for precision applications.

Features

  • Ultra-small 9×12 mil (0.230×0.305 mm) form factor.
  • Tight tolerance with 1% and 2% tolerance options.
  • TiW-Au wire-bondable metal stack

Ultra-Small Tight-Tolerance Resistors

Part Number Size  (Mils) Size (mm) Resistance Tolerance Spec Sheet
TDR-100F-9x12x6-E 9x12x6 0.230 x 0.305 x 0.152 10Ω ±1% Get Spec Sheet
TDR-100G-9x12x6-E 9x12x6 0.230 x 0.305 x 0.152 10Ω ±2% Get Spec Sheet
TDR-250F-9x12x6-E 9x12x6 0.230 x 0.305 x 0.152 25Ω ±1% Get Spec Sheet
TDR-250G-9x12x6-E 9x12x6 0.230 x 0.305 x 0.152 25Ω ±2% Get Spec Sheet
TDR-500G-9x12x5-E 9x12x5 0.230 x 0.305 x 0.127 50Ω ±2% Get Spec Sheet
TDR-750F-9x12x6-E 9x12x6 0.230 x 0.305 x 0.152 75Ω ±1% Get Spec Sheet
TDR-750G-9x12x6-E 9x12x6 0.230 x 0.305 x 0.152 75Ω ±2% Get Spec Sheet
TDR-101F-9x12x5-E 9x12x5 0.230 x 0.305 x 0.127 100Ω ±1% Get Spec Sheet
TDR-101G-9x12x5-E 9x12x5 0.230 x 0.305 x 0.127 100Ω ±2% Get Spec Sheet
TDR-102F-9x12x5-E 9x12x5 0.230 x 0.305 x 0.127 1000Ω ±1% Get Spec Sheet
TDR-102G-9x12x5-E 9x12x5 0.230 x 0.305 x 0.127 1000Ω ±2% Get Spec Sheet



Key to Part Number



Please contact us for other sizes and metallization schemes.

Note: If you have custom specifications you wish to satisfy then Tecdia can tailor the dimensions, dielectric constant, capacitance, TC and other options to match target capacitance options desired. For immediate assistance just give us a call at 408-748-0100 (USA) or contact us electronically using our contact form, tell us your requirements and we will find you the perfect part for you.



Search Ceramic Products

Here our ceramic products can be searched to find a part number that satisfies your desired specifications. Select the desired product from the tabls below and parametrically search for your specifications.
Spec sheets can be downloaded from the search results.

Single Layer Chip Capacitors


* indicates a required field.



*Ranges can be dragged and selected.





Row/Array Capacitors

Hi-K capacitors available in a 2,3 or 4 pad arrays. Sharing common backside metalization, this configuration provides space and cost savings.




Thin Film Chip Resistors

Wirebondable single layer thin film resistors suitable for both AuSn and epoxy die attachment. Available in sizes from 16 x 16 mils with power handling up to 100mW.
