Key to Part Number


External View



Product Overview

Standard Part Numbers


Model Part Number Tip Dimensions Tip Internal Length
Internal Structure
Tip Wrap Syringe
Same caliber
Serial No.
I.D (φd) O.D (φD1)
ARQUE A-100200100SN-A121 0.10 0.20 1.00
A-150250100SN-A122 0.15 0.25 1.00
A-200300100SN-A123 0.20 0.30 1.00
A-250350100SN-A124 0.25 0.35 1.00
A-300400100SN-A125 0.30 0.40 1.00
A-350450100SN-A126 0.35 0.45 1.00
A-400500100SN-A127 0.40 0.50 1.00
A-450550100SN-A128 0.45 0.55 1.00
A-500600100SN-A129 0.50 0.60 1.00
A-600700100SN-A432 0.60 0.70 1.00
ARQUE-S A-100200000SN-A191 0.10 0.20 0.30
A-150250000SN-A192 0.15 0.25 0.30
A-200300000SN-A193 0.20 0.30 0.30
ARQUE SELECT A-300400100SN-A742 0.30 0.40 1.00
A-350450100SN-A743 0.35 0.45 1.00
A-400500100SN-A744 0.40 0.50 1.00
A-500600100SN-A745 0.50 0.60 1.00
A-600700100SN-A746 0.60 0.70 1.00
ARQUE PREMIUM A-030080000SN-A538 0.03 0.08 0.20
A-050100000SN-A539 0.05 0.10 0.30
A-070120000SN-A540 0.07 0.12 0.30
A-080130000SN-A541 0.08 0.13 0.30



Tecdia’s main dispenser nozzle.



A new model that keeps the basic specifications and extracts only the product numbers with high needs and keeps the price down.



An ultra-fine and highly accurate nozzle that has pushed the technological limits of advanced technology development applications.

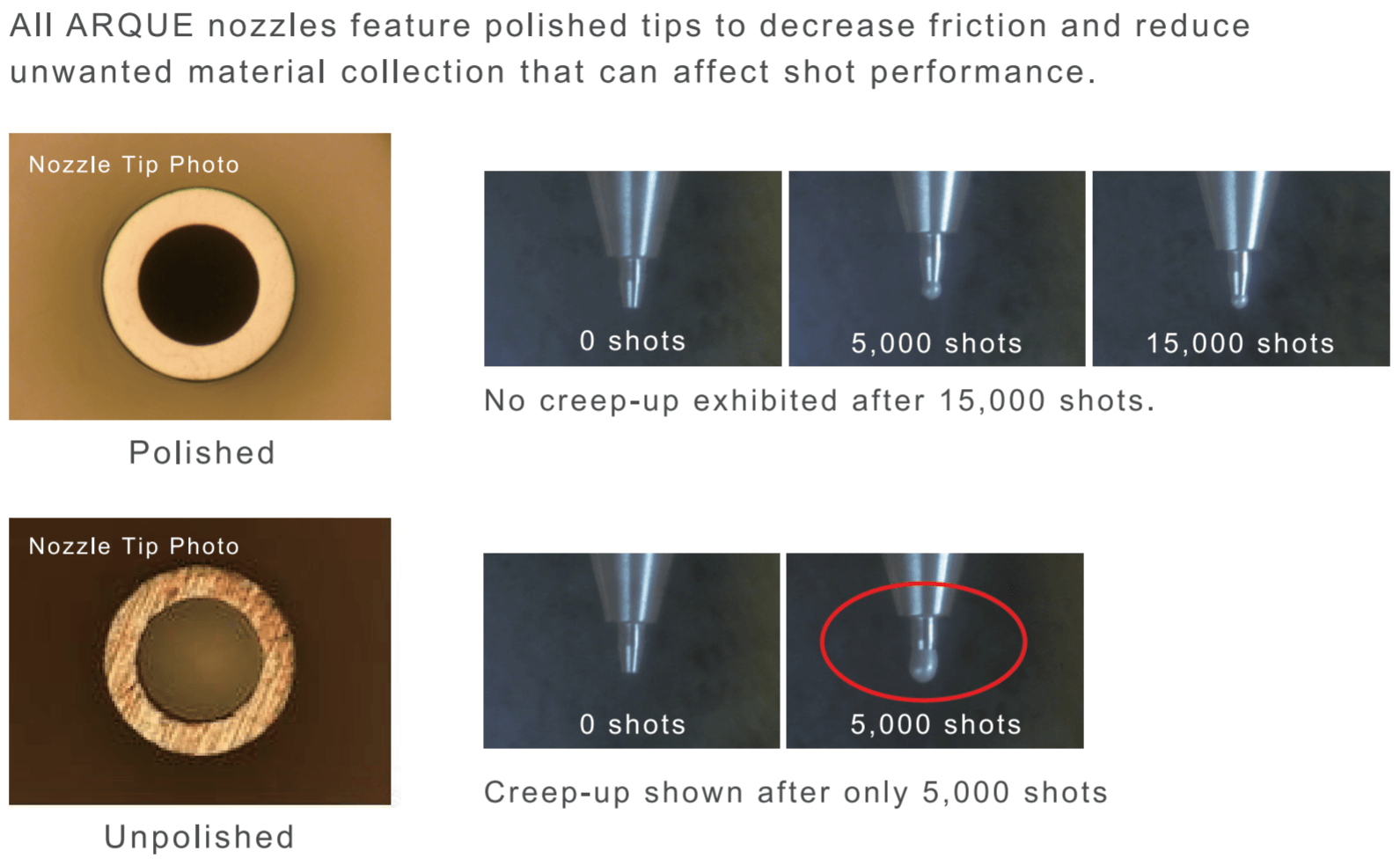

Creep Up Prevention


Clog Suppression

ARQUE nozzles are engineered with a “full-flat” interior designed with a joint-less internal taper eliminating the stepped bore that causes accumulation and hardening of material. This allows the nozzle to maintain high fluidity without clogging.

Viscosity (High) Viscosity (Low) Filler (Large) Filler (Small) Tip Strength Washabillty Prevents Creep-up Precision
ARQUE Very Good Excellent Excellent Excellent Very Good Excellent Very Good Excellent
ARQUE-S Excellent OK Excellent Excellent Excellent Excellent Very Good Excellent
Super Long OK Excellent Excellent Excellent OK Excellent Very Good Excellent
SELECT Very Good Very Good Excellent Excellent Very Good Excellent Very Good Very Good
PREMIUM Excellent OK OK OK OK Excellent Very Good Excellent
AG coating Excellent


Tapered Design

The smooth transition of the tapered design is free from tool marks and fully eliminates clogging.

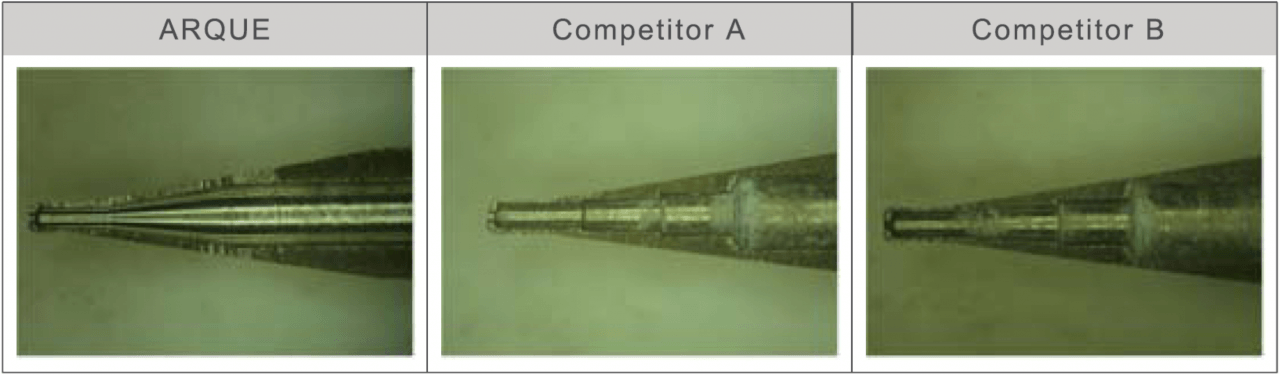

Internal Shape Comparison

The straight and smooth internal profile eliminates material clogging caused by stepped machining.



Perfect Alignment

Joint-less interface improves pressure response between the nozzle and the syringe.



Shorter nozzles tip lengths are available for some ARQUE products.


AG Coating

Tecdia offers AG coating for select ARQUE products. This hydrophobic coating improves the ability of nozzle to separate from the material and reduces material stringing. Thus improving the dispensing consistency.


Nozzle Cleaning

We recommend cleaning in an ultrasonic bath then rinsing with acetone or IPA. Please take care when cleaning in the ultrasonic bath as the nozzle tips are fragile. Cleaning jigs to place in the bath to protect the nozzle tips are available for sale
